Geological drilling rig H30S type

Specification


Wiertnica samochodowa H30S


H30S vehicle drilling rig is used to make vertical bores by flush drilling technology (rightward process).

To this machine we propose the following slurry pumps:

  • Piston type with efficiency ~400 dcm3/min
  • Screw type with efficiency ~600 dcm3/min
  • Rotational type with efficiency ~1.500 dcm3/min

Drilling rig H30S is mounted on an all-terrain vehicle. Machine is drive from an additional hydraulic power pack (with fuel engine ~90kW max.) installed on board.



Technical data

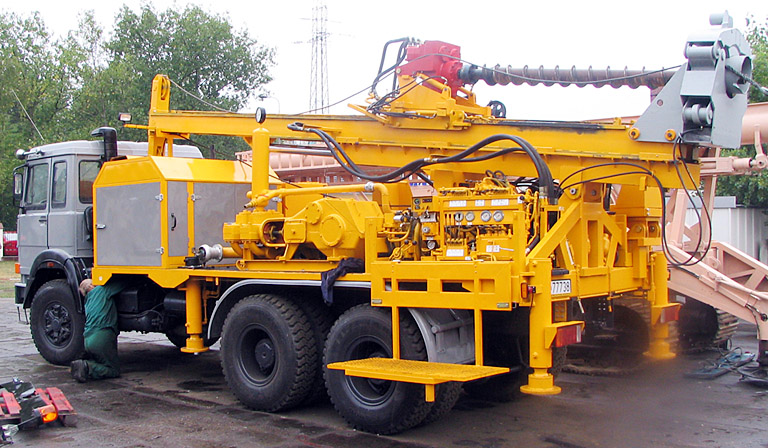

Wiertnica samochodowa H30SWiertnica samochodowa H30SWiertnica samochodowa H30SWiertnica samochodowa H30SWiertnica samochodowa H30SH30S na placu budowyH30S z pompą śrubowąWiertnica H30S gotowa do jazdyWiertnica H30S w pozycji roboczejWiertnica H30S z odchylną wiertarkąWiertnica samochodowa H30SWiertnica samochodowa H30SWiertnica samochodowa H30SWiertnica samochodowa H30SWiertnica samochodowa H30SWiertnica samochodowa H30S



Wiertnica samochodowa typ H30S w położeniu roboczym

Geological drilling rig H30S type in working position



Wiertnica typ H30S w położeniu transportowym

Geological drilling rig H30S type in transport position



Technical data

GEOLOGICAL DRILLING RIG typ H30S TYPE
MAX. DRILLING DIAMATER (DRY / SCRUBBER) mm 300/170
MAX. BORE DIAMETER m 3
MAX. DRILLING DEPTH (DRY / SCRUBBER) m 50/100
MAX. CASING PIPE DIAMETER mm 12 3/4"(324mm)
ROTARY HEAD GEAR I II
TORQUE daNm 500 250
REVOLUTIONS rev/min 80 160
POMPA PŁUCZKOWA NURNIKOWA PPN350
MAX. efficiency dm³/min 350
MAX. PREASURE MPa 4
FENCE

ROATARY HEAD TRAVEL mm 3700
PULL-DOWN FORCE kN 40
PULL-UP FORCE kN 60
FENCE TRAVEL

TRAVEL mm 1200
PULL-DOWN FORCE kN 130
PULL-UP FORCE kN 190
HYDRAULIC WINCH

MAX. LINE STRENGHT kN 29
LINE DIAMATER / LINE LENGHT
ø 12mm / 120m
JERK-LINE (OPTION)
TRAVEL OF THE DEVICE HUNG TO THE LINE mm 630
MAX. DEVICE WEIGHT kg 630 880
WIDTH 2550
TOTAL WEIGHT (WITHOUT CAR) 5000÷7500 kg
VEHICLE CHASSIS Before purchasing, please consult
