Pile driver, type KB2/KB2G

Kafar samojezdny KB-2GKafar samojezdny KB-2

KB-2 pile driver is intended for driving different steel sections into the ground, especially posts for roadside safety fences. Posts of maximum 2.3 m in length are driven by means of a hydraulic hammer pressed against the post with a hydraulic actuator.

The pile driver mast is able to tilt (left-right) from 0 to 10 and slide out forward by max. 1200 mm. Pile driver track chassis or tri-circular chassis allows the machine to move easily around the building site. The pile driver is operated from the operator’s seat.

The pile driver may be fitted with a drilling head allowing to drill with an auger or a core drill.



Kafar samojezdny KB-2 / KB-2GKafar samojezdny KB-2 / KB-2GKafar samojezdny KB-2 / KB-2GKafar samojezdny KB-2 / KB-2GKafar samojezdny KB-2 / KB-2GKafar samojezdny KB-2 / KB-2GKafar samojezdny KB-2 / KB-2GKafar samojezdny KB-2 / KB-2GKafar samojezdny KB-2 / KB-2GKafar samojezdny KB-2 / KB-2GKafar samojezdny KB-2 / KB-2G


Pile driver KB-2G in working position


Pile driver KB-2G in transport position

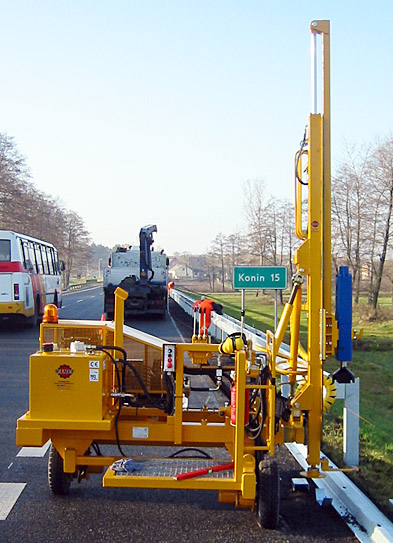

Pile driver KB-2 in position



Pile driver KB-2 in transport position



Technical data KB2 / KB2G

Striking energy320J
Number of strokes700 ÷ 900 /min
Working pressure12 MPa
Hydraulic pump efficiency38 dm3/min
Hydraulic hammer travel2000 mm
Max. length of a driven element2300 mm
Rotary head (optional):
Max. torque
Max. rotary speed

1400 Nm
85 rev/min
Driving speed30 m/min
Combustion engine power18 kW
Hammer drive in force200 daN
Max. profile pull out force25 kN
KB2/KB2G pile driver weight1100/1400 kg
